Rongchuang Zhixin-46 inch LCD splicing screen

Ultra narrow edge splicing screen, with sturdy and reliable borders. 0.88, 1.7, 1.8, and 3.5mm ultra narrow borders are optional to reduce the distance between borders. When forming a TV splicing wall, if you are looking at the same picture;
Professional level high-definition image processing technology improves the color uniformity of TV splicing walls (composed of multiple splicing screens), making the picture appear very clean and tidy;
High performance anti glare surface treatment disperses the reflected light from surrounding light, greatly improving the readability of images displayed on the display screen.

Characteristics of Signal Loop Pass Board (Optional)

(1) Supporting 4K input, when using 4 1920 splicing screens (3840x2160), it can achieve point-to-point display without compression or stretching, resulting in clearer and more realistic display effects;

(2) Support DP looping, any input signal can be looped through DP output to the DP input port of the next screen. This function can replace the distributor and matrix (front-end signal access is4kSignal, then it replaces4kDistributors and 4k matrices）To use certain functions of（No longer requires signal splitter）;

(3) The input signal supports flipping at 90 degrees, 180 degrees, and 270 degrees, with excellent flipping effect.

(4) Supports machine codes (address codes), where row and column addresses can be obtained as soon as you see them. Simply fill in the control software and you no longer have to worry about calculating binary values;

(5) 13661920 commonly used screen parameters (supporting 8-bit and 10 bit LVDS LCD screens) system integration, can be set through a dial switch during use, and installation and after-sales are very convenient, eliminating the trouble of burning programs;

(6) The automatic signal detection function automatically switches to the signal source when a signal input is detected.

(7) The ST5810 PLUS supports a 4k vby1 60Hz LCD screen (optional).

(8) Support opening one signal (signal can support up to 4k) for full screen roaming and stacking (optional).

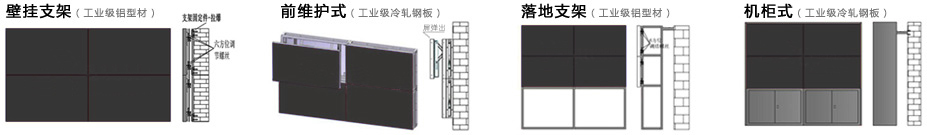

Common installation methods for splicing screens:
