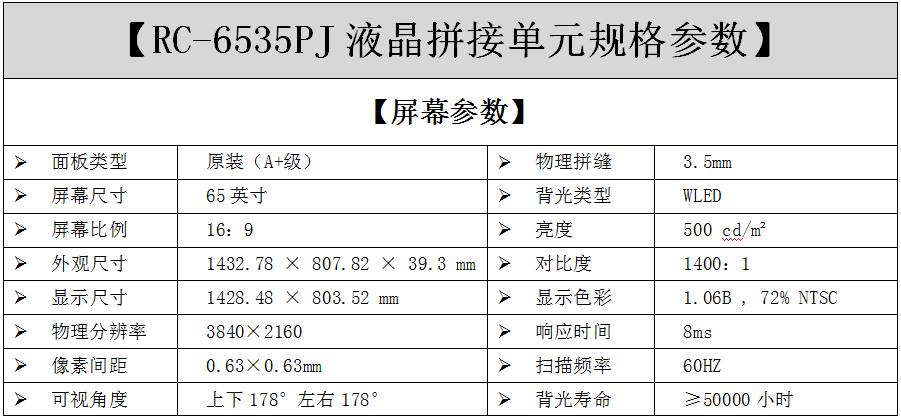

Specification model: RC-6535PJ
RC-6535PJ ultra-narrow edge stitching screen, the frame is strong and reliable, 0.88mm ultra-narrow bezel, reducing the distance between the borders, when forming a TV stitching wall, if you look at the same screen;
Professional high -definition image processing technology, improve the color uniformity of the TV splicing wall (spliced by multiple stitching screens), making the picture look very clean and tidy;
High -performance anti -glare surface treatment, decentralized reflex light of the surrounding light, greatly improved the readability of the images and images displayed on the display.
Signal Ring Plate Carter Point (optional)
(1) Support 4K input, and click 4 1920 stitching screens (3840x2160), you can implement the point -to -point display display screen without compression stretching, the display effect is clearer and more realistic;
(2) Support the DP ring, any input signal can be used to the DP input port of the next screen through the DP output ring. This function can replace the assignor and matrix (front -end signal access isSignal, then replace itThe assignor and 4K matrixCurePart of the function to use((No longer need a signal distributionerCureIt
(3) The input signal supports 90 degrees, 180 degrees, 270 degrees flip, and the flip effect is excellent.
(4) Support the machine code (address code), the ranking address is obtained, and the control software can be filled in. You no longer need to worry about calculating the binary;
(5) 1366, 1920 commonly used screen ginseng (supports 8bit and 10bit LVDS LCD screen) system integration. It can be set up by dial -switch when used. It is very convenient after installation and sale.
(6) The signal is automatically detected. When a signal input is detected, the signal source is automatically switched.
(7) ST5810 Plus supports 4K VBY1 60Hz LCD screen (optional).
(8) Support the opening signal (signal can support 4K) roaming and overlapping (optional) on the entire screen.
